2 Flute Ball Nose End Mill

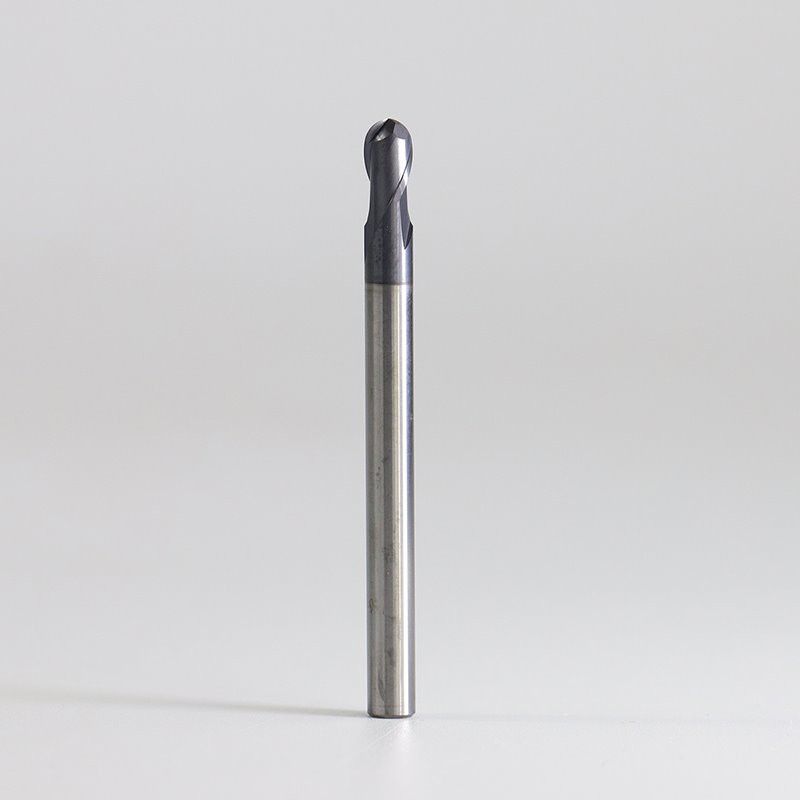

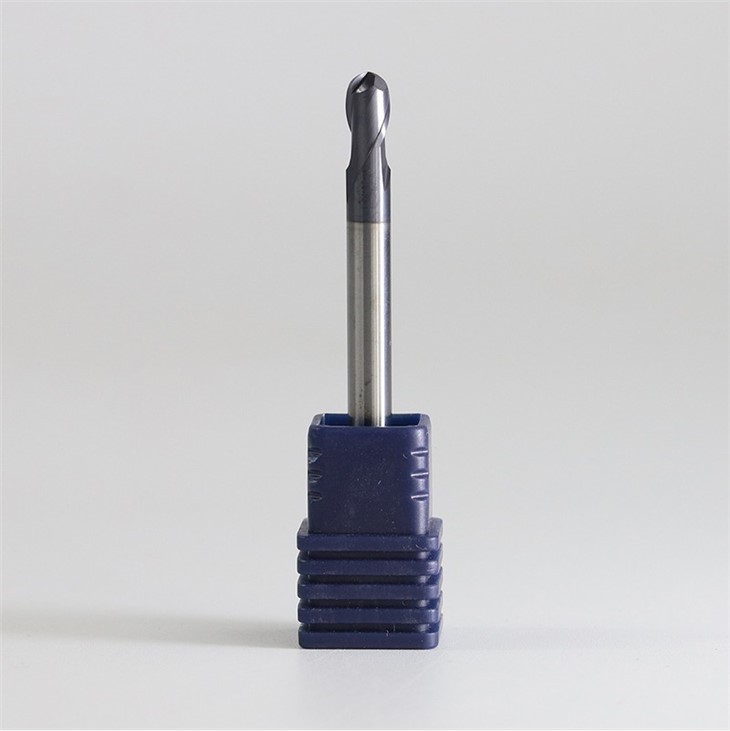

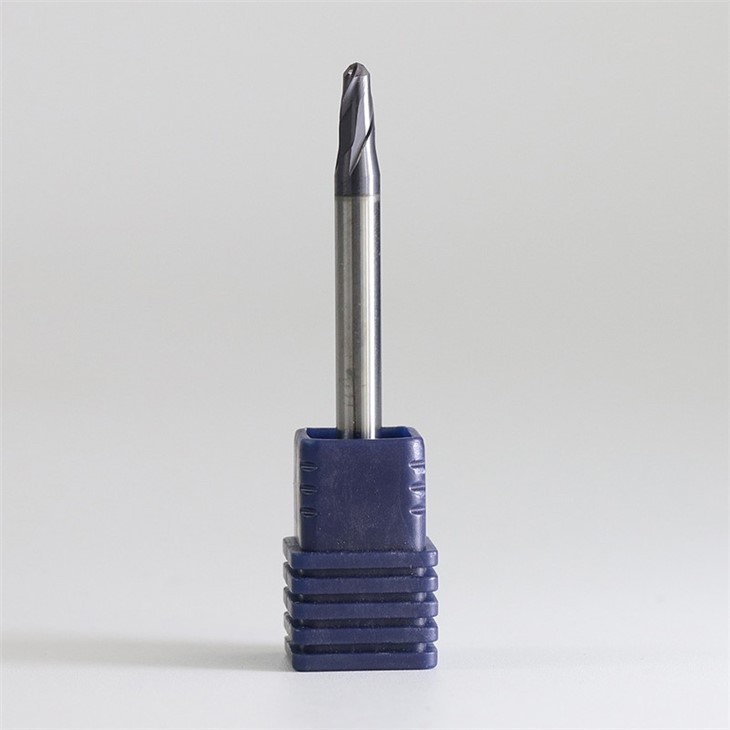

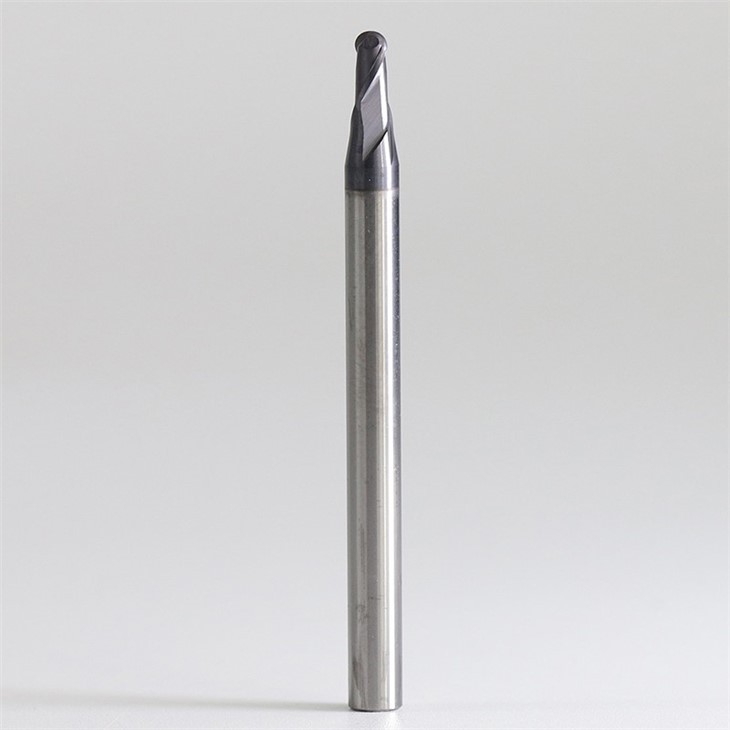

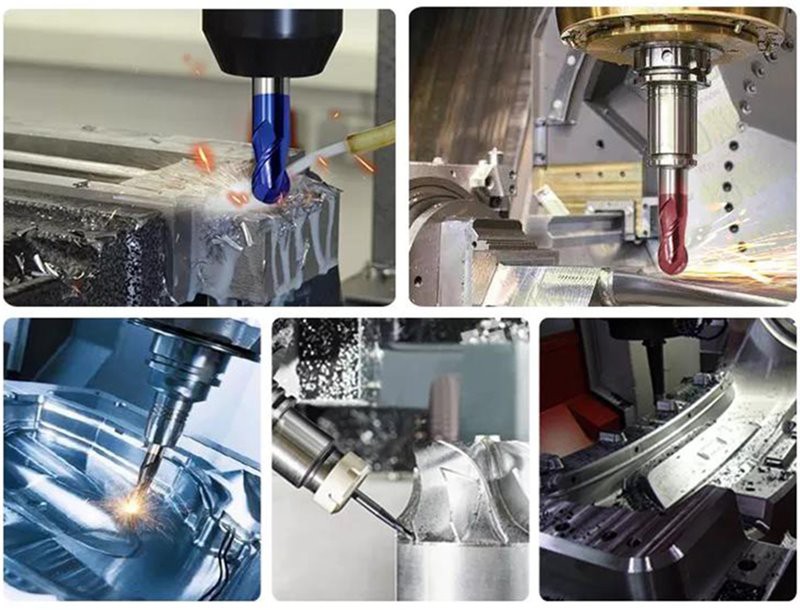

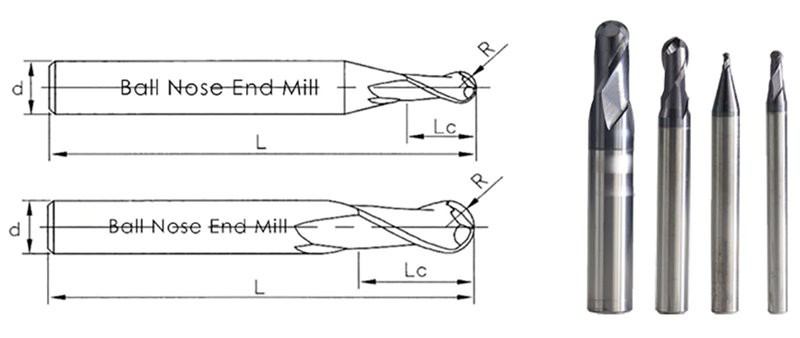

2 flute ball nose end mills are also known as "ball nose mills". The end of the tool is ground with a full radius equal to half the diameter of the tool, with the edge centered. It is made of solid carbide and the monobloc can be general purpose or high performance geometry. They can be used for milling large fillet radii, full-radius grooving, and contour or contour milling. We have a variety of standard sizes and lengths to choose from.

Product Specifications

Features

Use the coated 2 flute ball nose end mills for demanding high-speed jobs in hard materials and longer production runs. They are more wear resistant than uncoated end mills. Coated titanium nitride (TiN) produces less friction than uncoated end mills, which means they last longer when operating at similar speeds. The titanium-carbonitride (TiCN) coating has a hard, smooth surface that resists chipping and wear and prevents material from accumulating on the cutting edge. They are especially suitable for aluminium.

2 flute ball nose end mills with composite coatings such as titanium-aluminum-nitride (TiAlN) dissipate heat better than other uncoated end mills, especially at high speeds. At high temperatures, the coating forms a layer of aluminum oxide that transfers heat to the chip and keeps the tool cool even when used without lubrication.

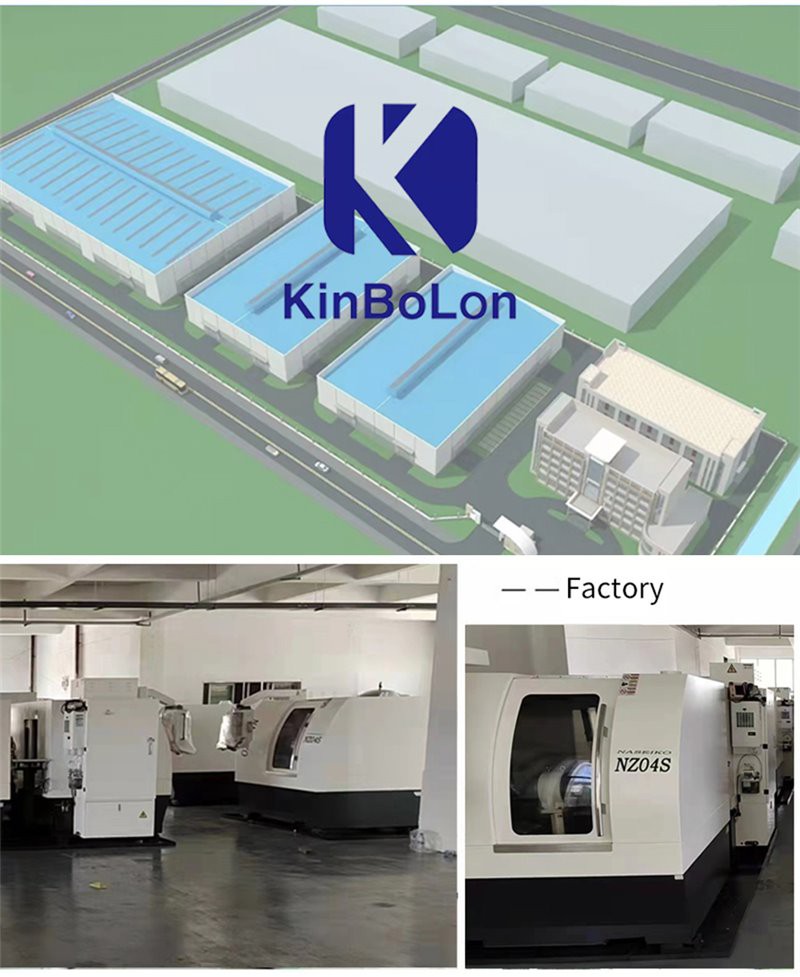

KinBoLon Factory

Packing and Shipping

Hot Tags: 2 flute ball nose end mill, China 2 flute ball nose end mill suppliers, manufacturers, Solid Carbide Ball Nose End Mills, CNC Ball End Mill, Carbide Ball End Mills, 2 Flute Ball Nose End Mill, Carbide Ball Nose End Mills, Carbide Ball Endmill
