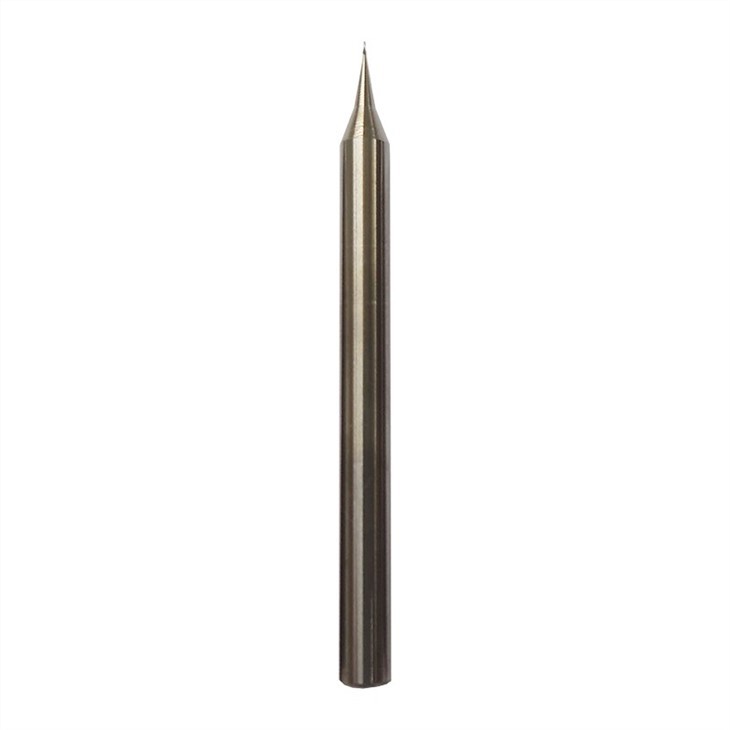

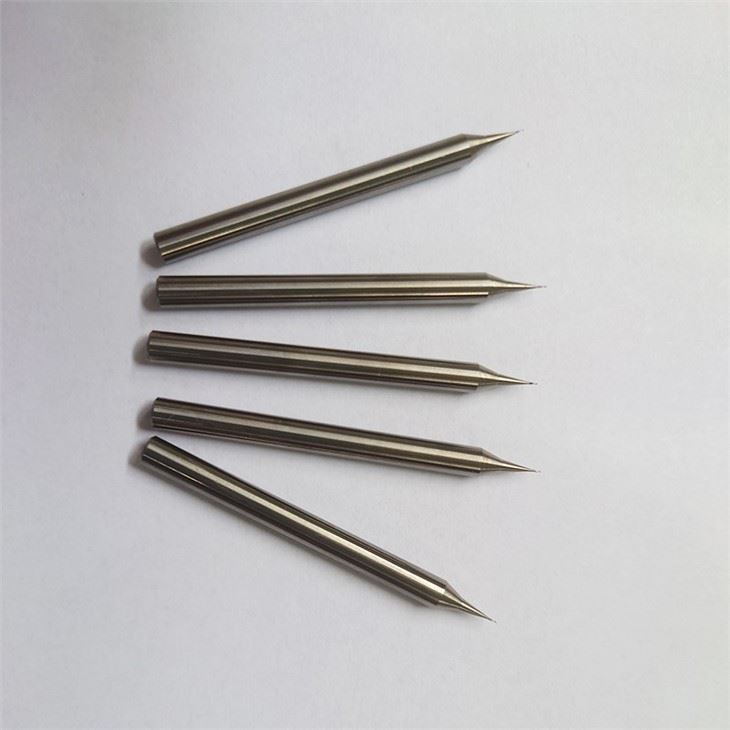

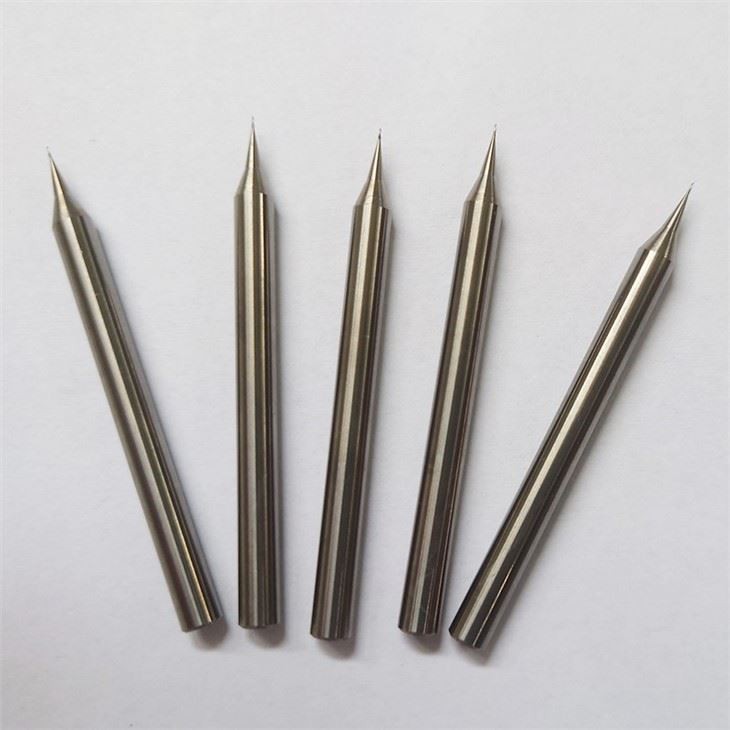

Miniature End Mills
The edges of Miniature End Mills may not be visible to the naked eye, but they are critical to machining quality and consistency. We offer micro end mills in a variety of diameters.

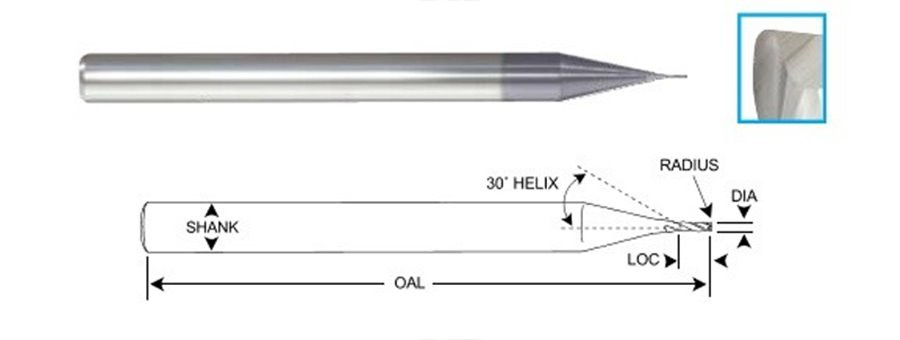

Product Specifications
Series | Solid Carbide Miniature End Mills |
Type | End mill |
Material | Grain size 0.3u tungsten carbide |
Coating | Composite coating |
Flute | 2flutes |

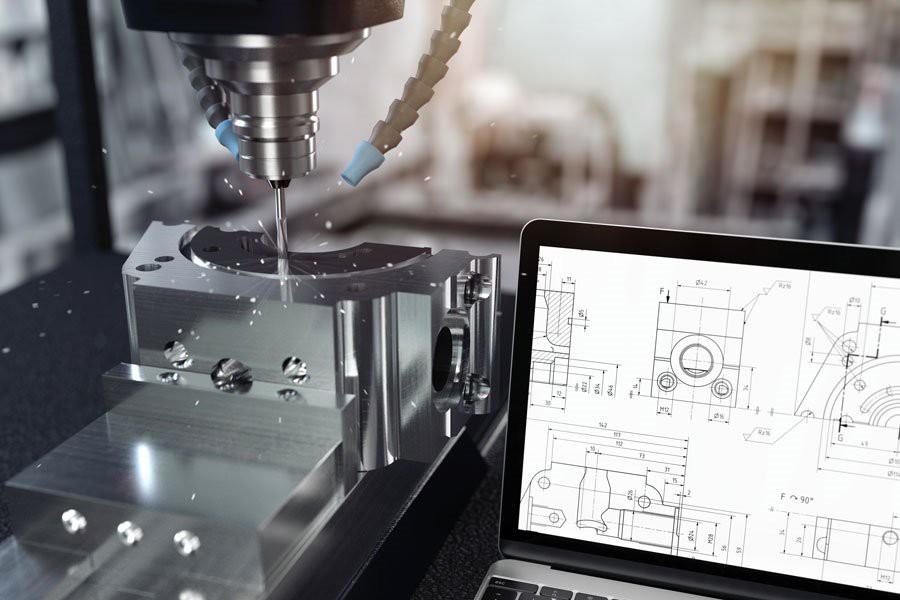

Advantage | Nanotechnology, Dental and Medical Devices, Molds, Aerospace, Electronics |
Usage | Fit for machining ≤HRC70° die steel, stainless steel, tool steel, carbon steel, alloy steel, copper alloy, cast iron, and other materials. |
Others | Accept non-standard size customization |
Features
Cut diameters start at 0.01 inches
Tolerances are in microns (0.000039”), smaller than a human hair
Manually select diameter to the nearest 0.0005”
Main relief angle maximizes machining quality
CVD diamond coatings for certain applications
Use of Miniature End Mills
Axial depth 25% of tool diameter in Z depth per pass
Use an accurate knife holder.
Point out the handle of the tool.
Measurement Notes:
Do not use micrometers or calipers to measure tools. (using non-contact measurement)
Tool length measurement using spacers
