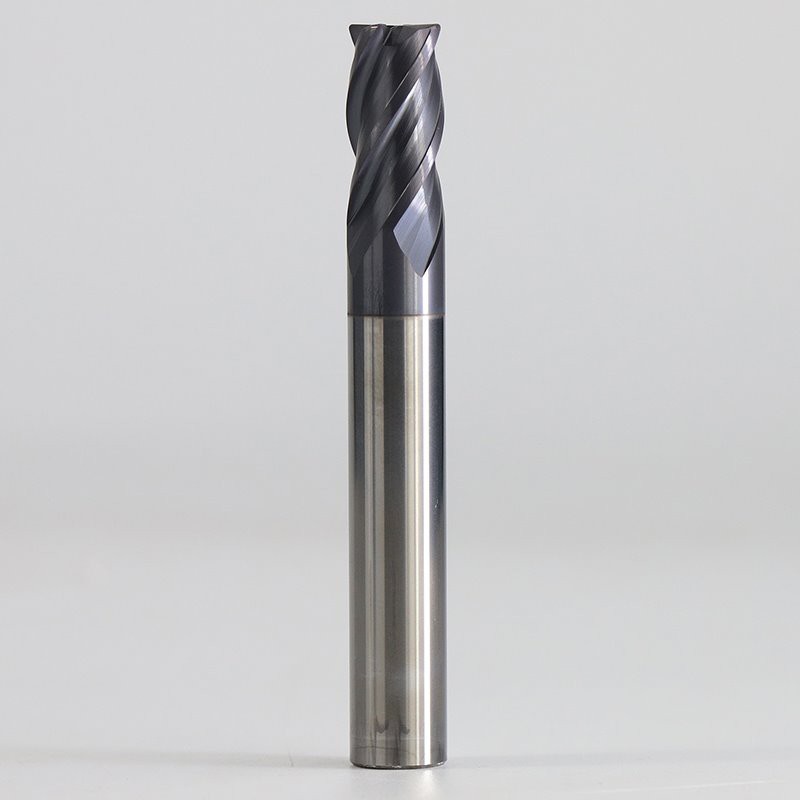

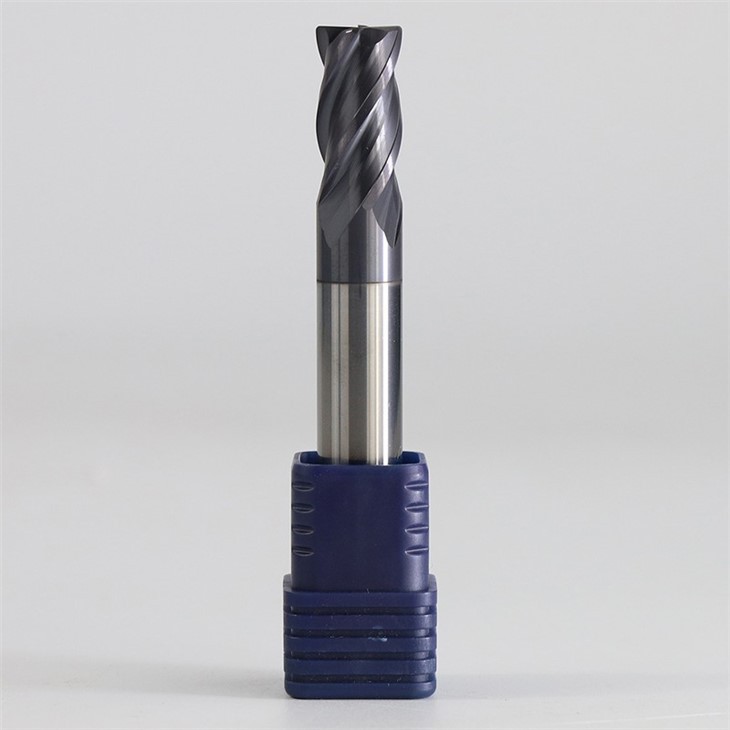

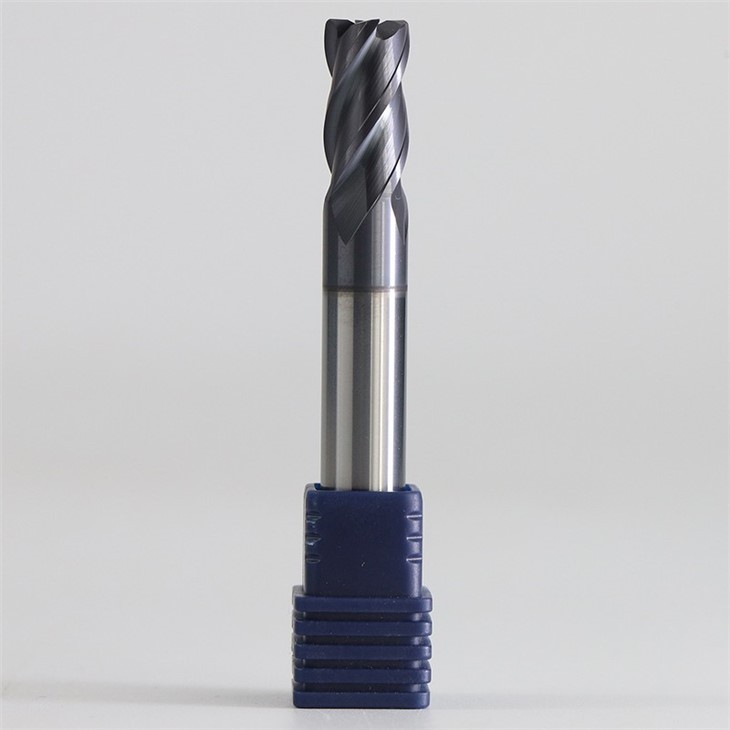

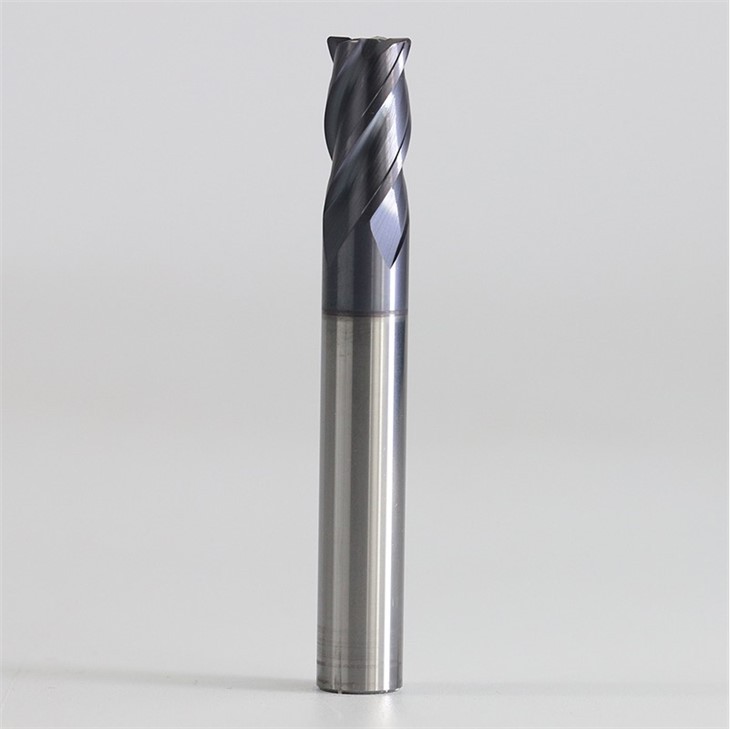

Corner Radius End Mill Cutter

The Corner Radius End Mill Cutter is a rounded corner that is ground on the bottom knife of the flat end mill. Due to the increased strength of the rounded corner, this bull nose end mill can greatly increase the tool life in the machining of hard metal materials compared to end mills of the same diameter. Use coated end mills for demanding high-speed jobs and longer production runs in hard materials. They are more wear resistant than uncoated end mills, which means they last longer when operating at similar speeds.

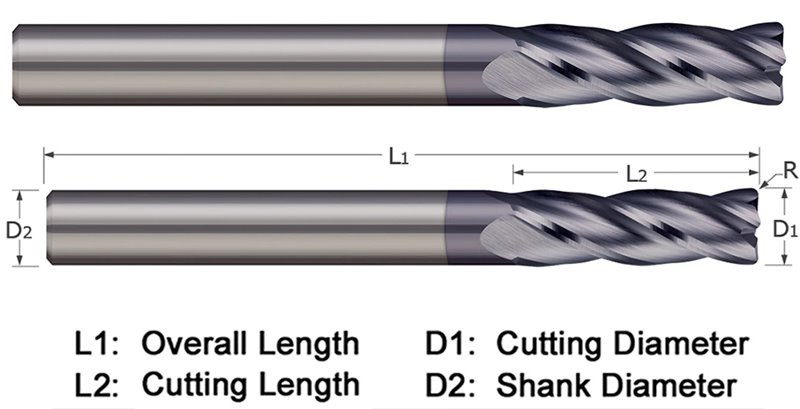

Product Specifications

To know the specific product parameters, please contact us by email!

Features

● Corner radius design strengthens the corner of the cutting end, allowing for longer tool life

● Centercutting for three axis capability of plunging, ramping and profile milling

● Can be used in dry machining applications for cast irons, ductile iron and selected carbon steels

● Machining speeds can increase up to 100% vs. uncoated tools

The top of the Corner Radius End Mill Cutter head has a large interior space for the chip flute, and the cutting is very easy to be discharged. It has a defect when roughing, the stairs are obvious after production and processing, and the flow rate of deep processing is uneven. This end mill is mainly used for rough machining of die blanks, plane finishing and side finishing, and is suitable for machining materials with higher hardness. Commonly used round nose knives have a fillet radius of 0.2 to 6. Round nose knives should be preferred in processing.

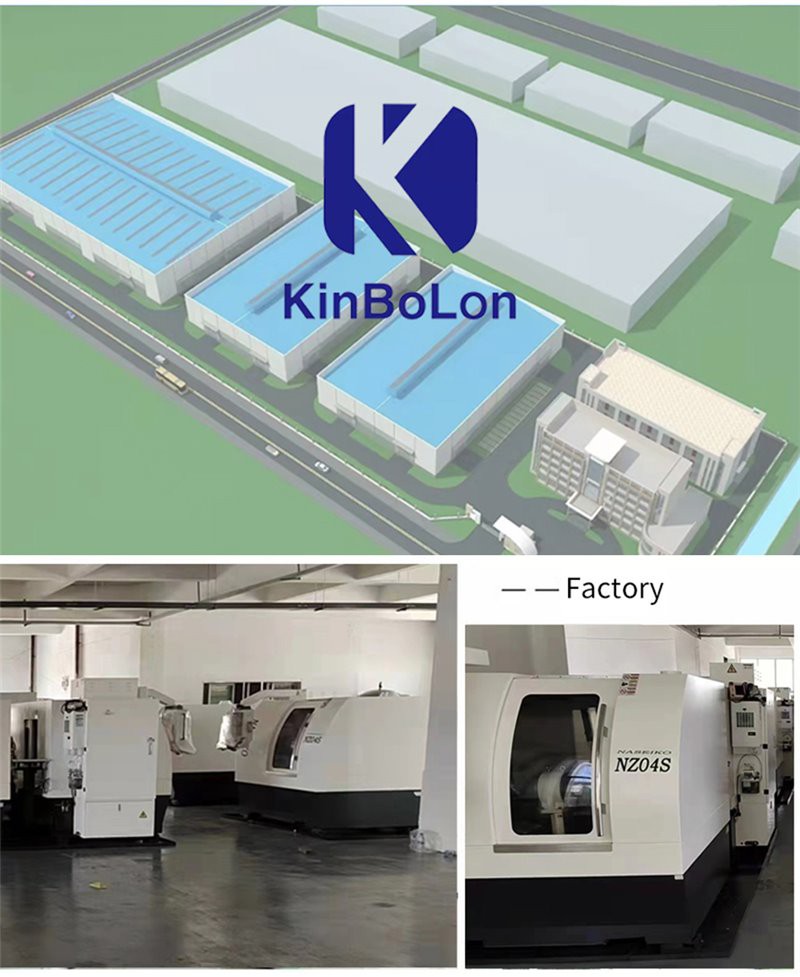

KinBoLon Factory

Packing and Shipping
