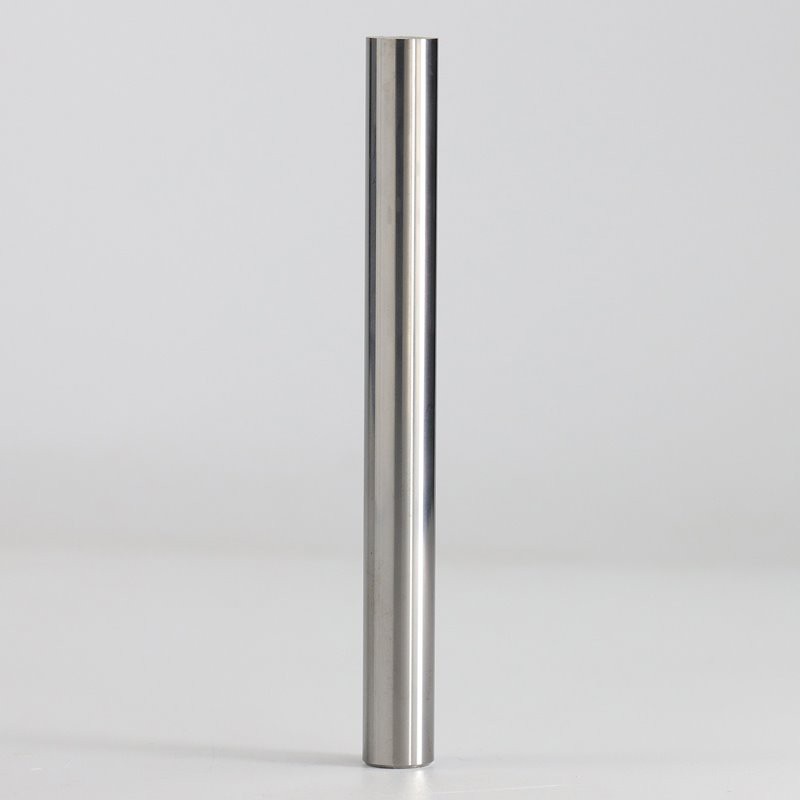

Solid Tungsten Carbide Rods

Cutting Tool Carbide Blanks is a surfacing electrode with low hydrogen sodium type coating using carbon steel as the welding core. Depending on the transition of tungsten carbide alloy in the coating, the surfacing metal contains 40% to 50% tungsten. Due to the thickness of the skin, the sleeve is longer, and the coating is easy to fall off in small pieces after the electrode becomes red. Therefore, it is advisable to use a DC current, the positive electrode of the electrode, and a smaller current.

Product Description

We'd like to introduce our Tungsten Carbide Rods to you, with professional production technology and stable quality:

Types available are:

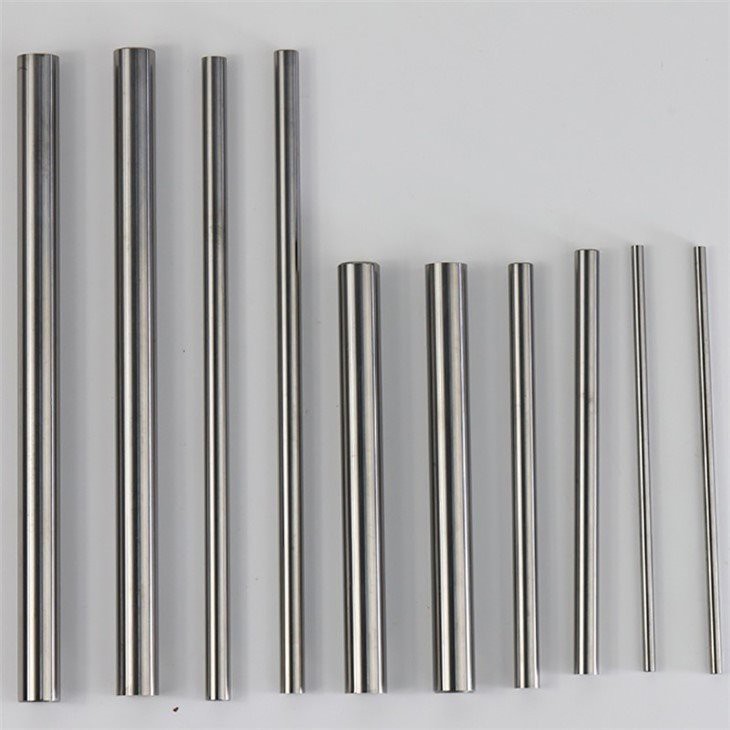

Tungsten carbide rods diameter from 1mm-45mm, length from 50mm-1000mm

One coolant hole rods diameter from 3mm -30mm, length is 330mm

Two coolant holes rods diameter from 4mm -20mm, length is 330mm

Two spiral coolant hole with 30 degree, diameter from 6mm -20mm, length is 330mm

Normal Grades are:

GW10 WC: 90%, CO:10%, Grain size: 0.8, Density: 14.4, Hardness: 91.8HRA, T.R.S: 3800

GW06 WC: 94%, CO:6%, Grain size: 0.4, Density: 14.85, Hardness: 94.8HRA, T.R.S: 3800

GW08 WC: 92%, CO:8%, Grain size: 0.4, Density: 14.65, Hardness: 93.6HRA, T.R.S: 3800

GW12 WC: 88%, CO:12%, Grain size: 0.4, Density: 14.25, Hardness: 92.6HRA, T.R.S: 3500

Application of tungsten carbide electrode

It is suitable for repairing parts subject to severe abrasive wear and surfacing welding of mechanical parts that are resistant to strong rock wear. Such as: concrete mixing blade, bulldozer and pump blade, dredger blade, high-speed sand mixing box, screw propeller (Jiaolong) blade, exhaust fan impeller, mixer blade, mud pump, coal mine chute, cement plant tray, tower Surfacing welding of tip, tooth, lining plate, jaw plate, rock breaker, hammer, bucket tooth, drill repair, etc.

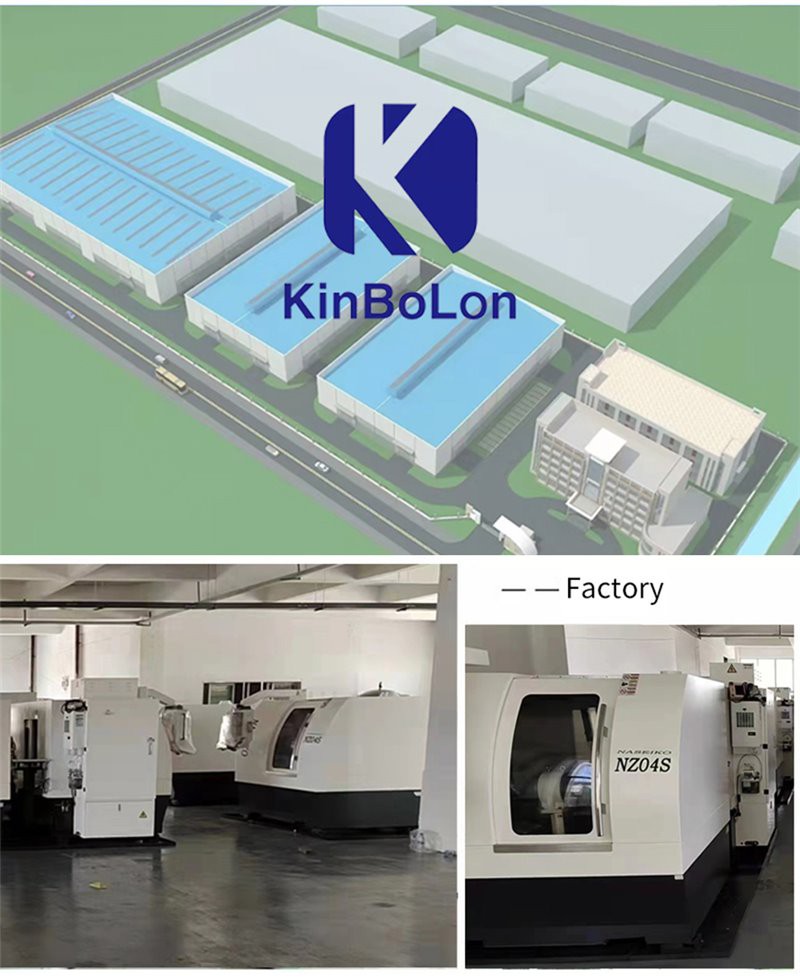

KinBoLon Factory

Packing And Shipping
